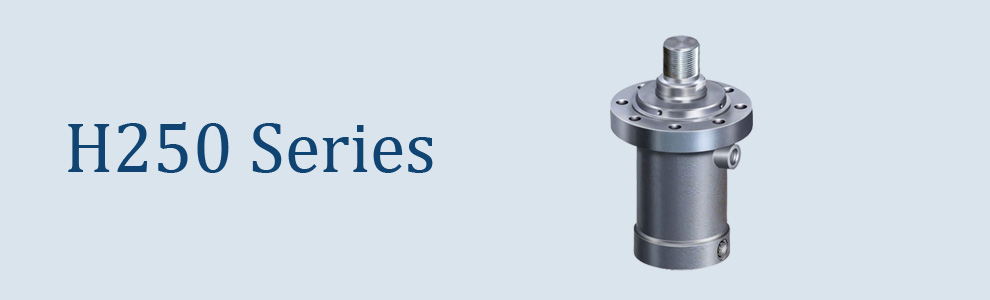

H250 Series

[ Welded round construction Maximum pressure - 250 bar ]

Cylinder selection guide

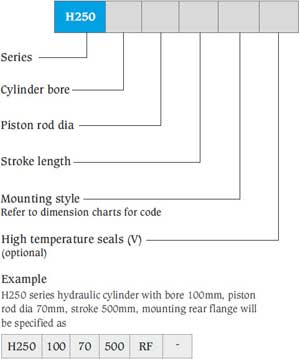

Ordering details for H250 series hydraulic cylinder








Features and specifications

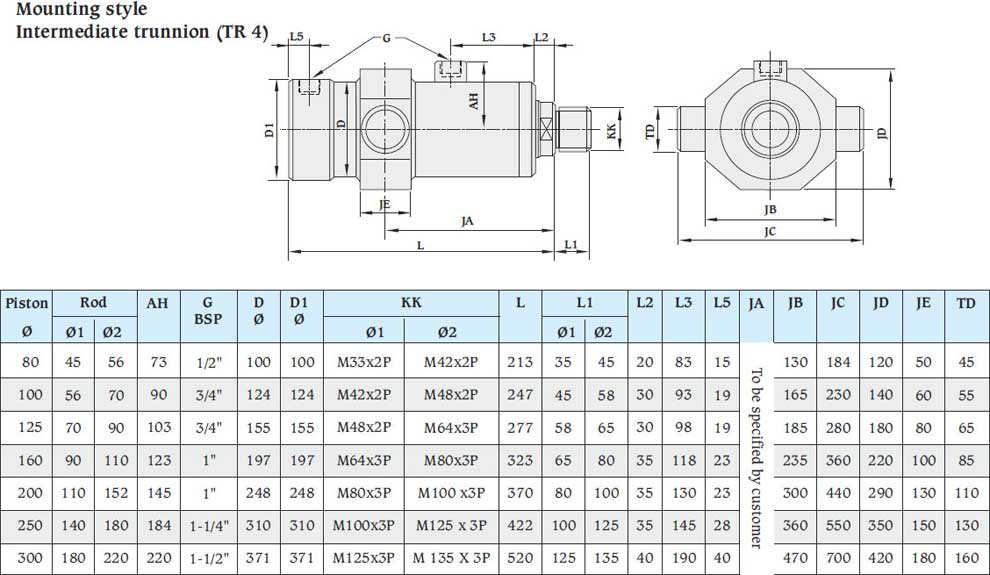

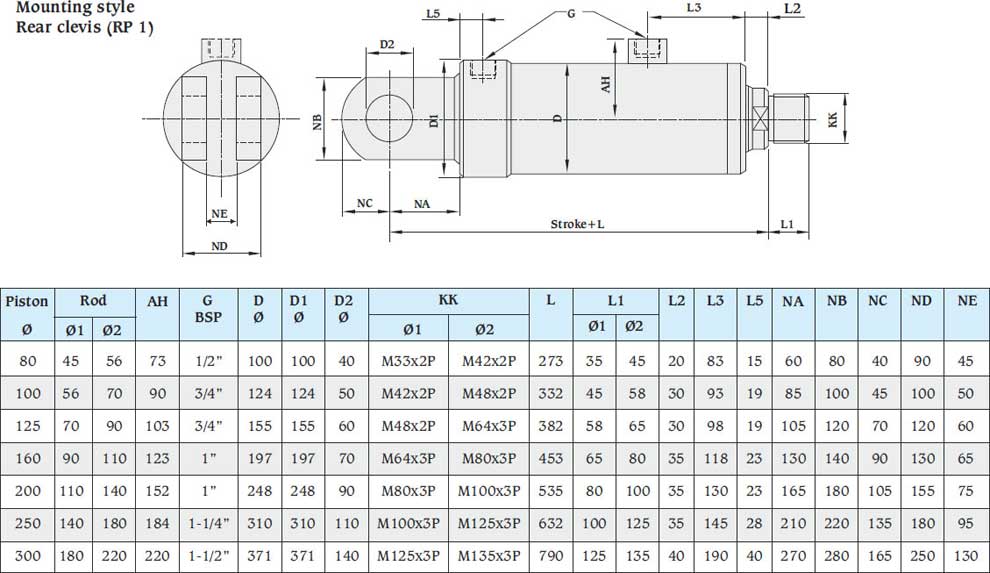

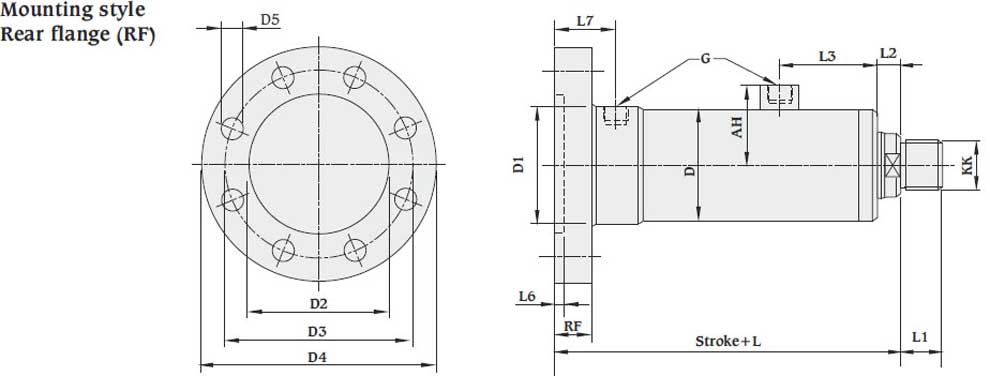

5 Standard mounting styles
Provision for smaller as well as bigger    rod diameter for each bore size
Bore sizes - 80 to 300 mm
Strokes available in any practical stroke    length
Maximum working pressure - 250 bar
Piston rods - 45mm to 220mm
Single rod designs
Non-cushioned
Temperature range : -
   -20 C to +80 C (standard)
   -20 C to +150 C (optional)
Seal types to suit a wide variety of    operating environments
Standard fluid - Mineral oil DIN 51524    (HL, HLP)



All dimensions are in millimeters unless otherwise stated.
