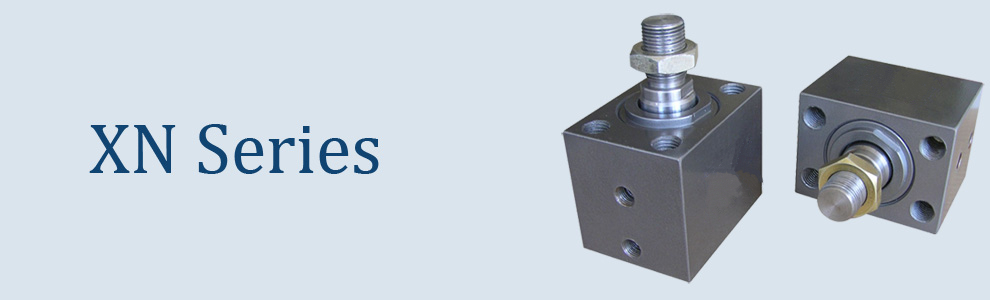

XN Series

[ Double acting compact Neulogic ]

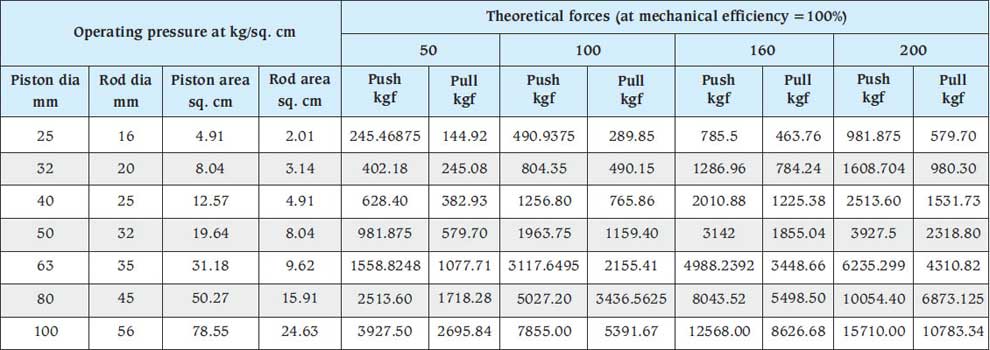

Cylinder selection guide

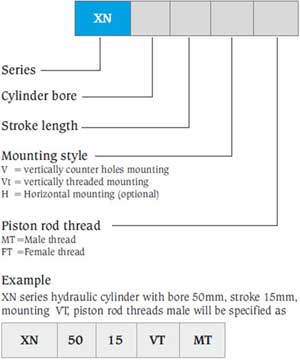

Ordering details for XN series compact Neulogic




Features and specifications
Male/Female threaded piston rod also    available
Can be mounted vertically or horizontally
Bore sizes - 25mm to 100mm
Strokes available in 5 to 50mm stroke    length only
Maximum working pressure - 200 bar
Temperature range : - 20 C to +80 C
Non-cushioned

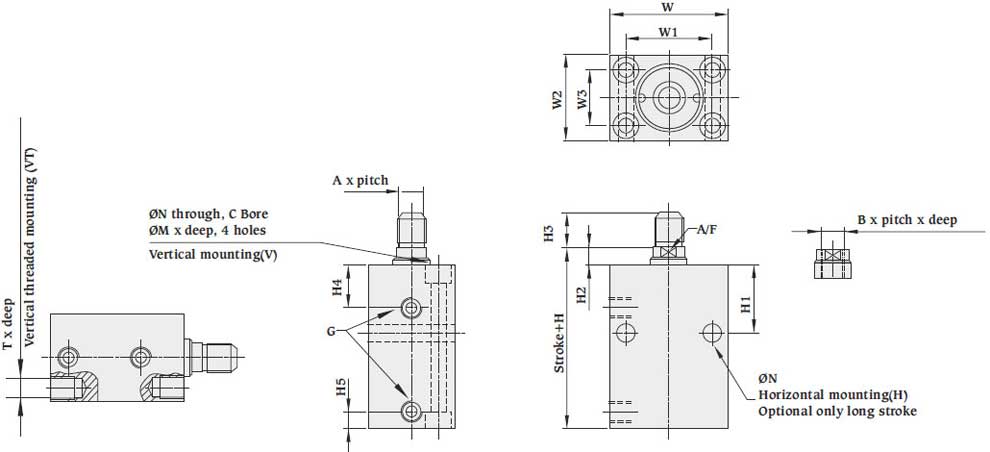

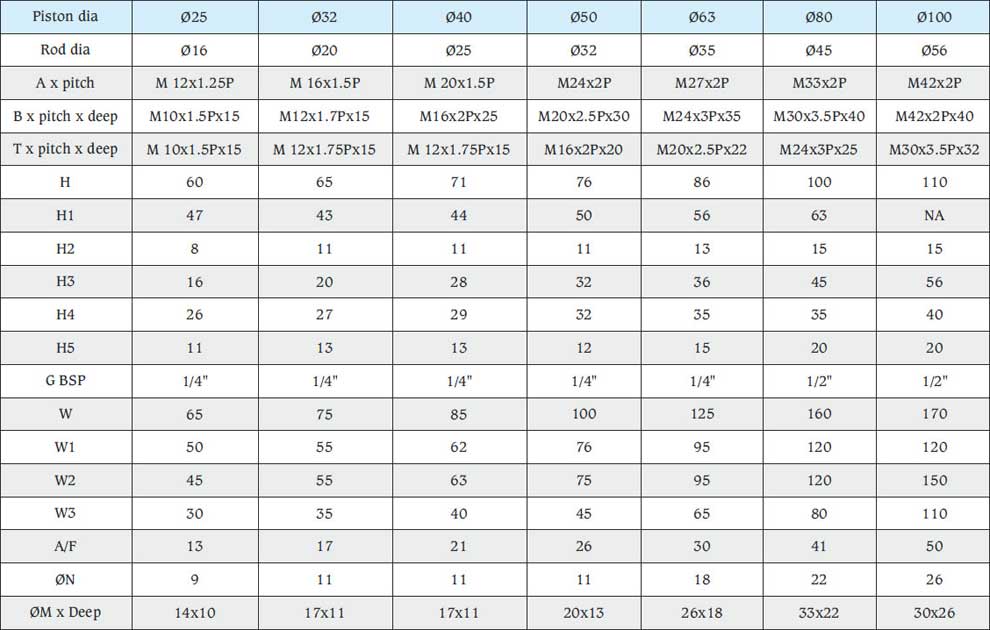

All dimensions are in millimeters unless otherwise stated.
